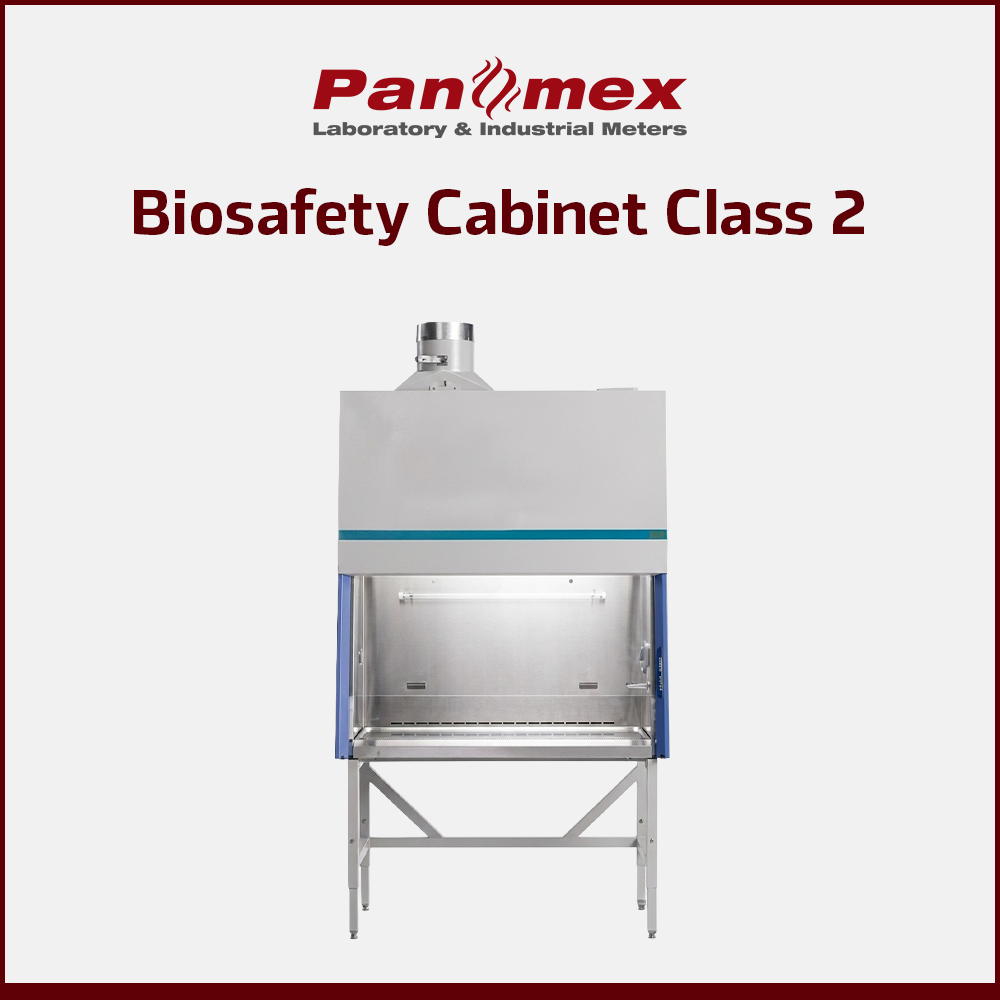

Biosafety Cabinet Class 2
Panomex Class 2 Biosafety Cabinets are designed to provide protection to the operator, the environment, and the materials inside the workspace. These biosafety cabinets are used to contain low-to-moderate risk biohazardous materials. Featuring downward airflow and HEPA filtration, Panomex biosafety cabinets recirculate clean air to provide the required level of protection against microorganisms and aerosols. Widely used in drug preparation, chemotherapy preparation, clinical research, medical and pharmaceutical sectors, life science facilities, and industrial laboratories, these cabinets are designed to comply with relevant application-specific standards.
| Inflow Velocity |
105 fpm (.53 m/s) |
|---|---|
| Downflow Velocity |
60 fpm (0.30 m/s) |
| Noise Level |
<65 dba |
| Filter |
HEPA filter 99.999% efficient (ULPA – Optional) |
| Particle retention |
0.3 microns |
| Light |
Fluorescent light |
| Light Intensity |
90 – 120 foot-candles |
| Controller |
Microprocessor controller w/ digital display |
| Body Construction |
Wooden / PCRC Sheet / SS 304 / SS 316 |
| Table Construction |
Stainless Steel 304 |
| Front Door |
Frameless auto sliding glass door |
| Pressure Gauge |
Magnehelic gauge |
| Blower assembly |
1/3 HP, Single Phase, 1440 RPM motor, Capacity 1000 CFM, Pressure 30 mm WG |
| Exhaust assembly |
300 CFM, ducting by PVC pipe with rain guard – Dia. 150mm |
| Certifications |
NSF/ANSI 49 (Optional) |
| Optional |
– Raised airflow grill |
