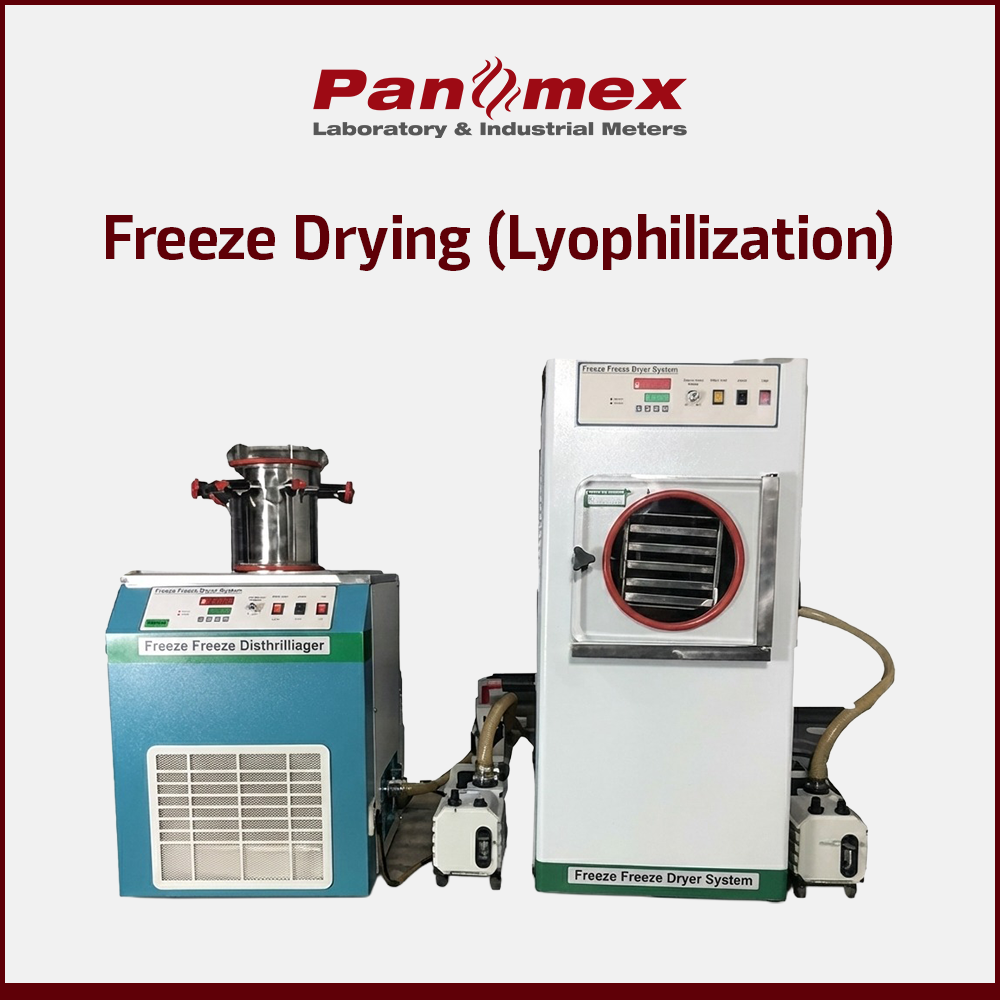

Laboratory Freeze Dryer – Lyophilizer Machine
Freeze Drying (Lyophilization) by Panomex is a dehydration process in which water is removed from frozen samples under a controlled, purified vacuum environment. This process consists of two main stages: sublimation (primary drying) and desorption (secondary drying). During lyophilization, the water present in frozen materials is directly converted from ice to vapor without passing through the liquid phase, allowing the product to dry efficiently without melting.
This technique enables long-term preservation of sensitive materials, which can later be rehydrated and restored to their original state without losing biochemical properties. Panomex freeze drying technology is especially suitable for bio-products that are sensitive in nature, such as antibiotics, vaccines, blood products, enzymes, and hormones.
| Cold trap temperature |
-40°C or below (-80°C Optional) |
|---|---|
| Temperature Sensor |
PT-100 |
| Controls |
Refrigeration ON/OFF Vacuum ON/OFF |
| Controller |
PID controller |
| Refrigeration System |
HCFC / CFC Free, -55°C (-86°C optional) |
| Compressor |
1/3 HP (hermetically sealed) |
| Defrost |
Hot gas solenoid system or heater defrosting |
| Pressure Control |
Automatic or Manual |
| Drain connection |
Side mounted |
| MOC |
Exterior – Powder coated MS Exterior top – SS 304 Drying chamber – SS 304 Cold Trap Chamber – SS 304 Lids – Acrylic |
| Optional |
– Two stages cooling system – Fast freeze flasks – Fast freeze adaptor – Extra ports manifold – Vacuum pump – Caster wheels – RS 232 printer interface – USB interface – Stainless steel exterior – Stoppers – IQ/OQ documentation – Clean room configuration – Chart recorder |
| Power Supply |
220 Volts |
