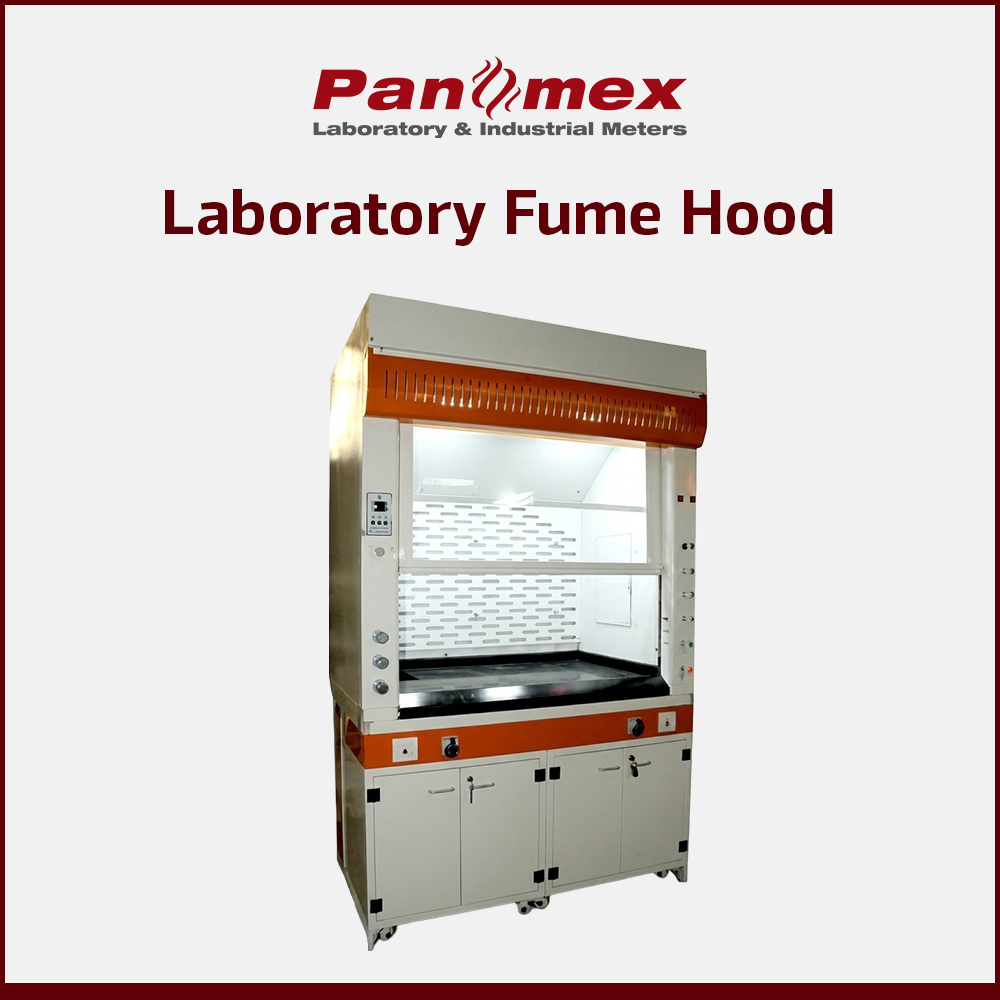

Laboratory Fume Hood (Chemical Fume Hood )
Laboratory Fume Hood Stations by Panomex are available in various sizes and dimensions to meet the specific requirements of research applications. These fume hoods offer a choice of vertical or horizontal sliding sash and are constructed using MS or stainless steel. Standard sizes are available to suit the most common laboratory needs, including 4 ft, 5 ft, 6 ft, and 8 ft models.
Often referred to as chemical fume hoods, these Panomex fume hoods help dilute and safely exhaust flammable gases and vapors. The product range includes general-purpose fume hoods, ductless fume hoods, and mobile units, all designed with a variety of optional features and specifications to address critical challenges in laboratory research environments worldwide.
| MOC |
CRCA 18G Epoxy Powder Coated |
|---|---|
| Stand |
M.S Pipe (18G) Powder coated |
| Working Table Top |
M.S Powder Coated Sheet Covered with P.P Sheet |
| Exhaust System |
Motor Blower Assembly Covered with G.I Sheet |
| Door / Sash |
Door vertical Folding Type. |
| Air Velocity |
≥0.5m/s |
| Noise Level |
65dBA |
| Glass Window |
Two layer toughen glass, 5mm thickness, Motor Control, height adjustable |
| Make-up Air |
Air needed to replace the air exhausted from a room by the fume hood and other ventilation devices. |
| Face Velocity |
The velocity of the air passing through the work opening of the fume hood measured in the plane of the sash. Measured in feet per minute (fpm), or liters per minute. |
| Electrical Fittings |
Electrical Sockets & MCB Switch |
| Illumination |
Fluorescent Lamp or UV Lamp |
| Optional |
– HEPA Filter |
| Power source |
220 / 230 Volts |
