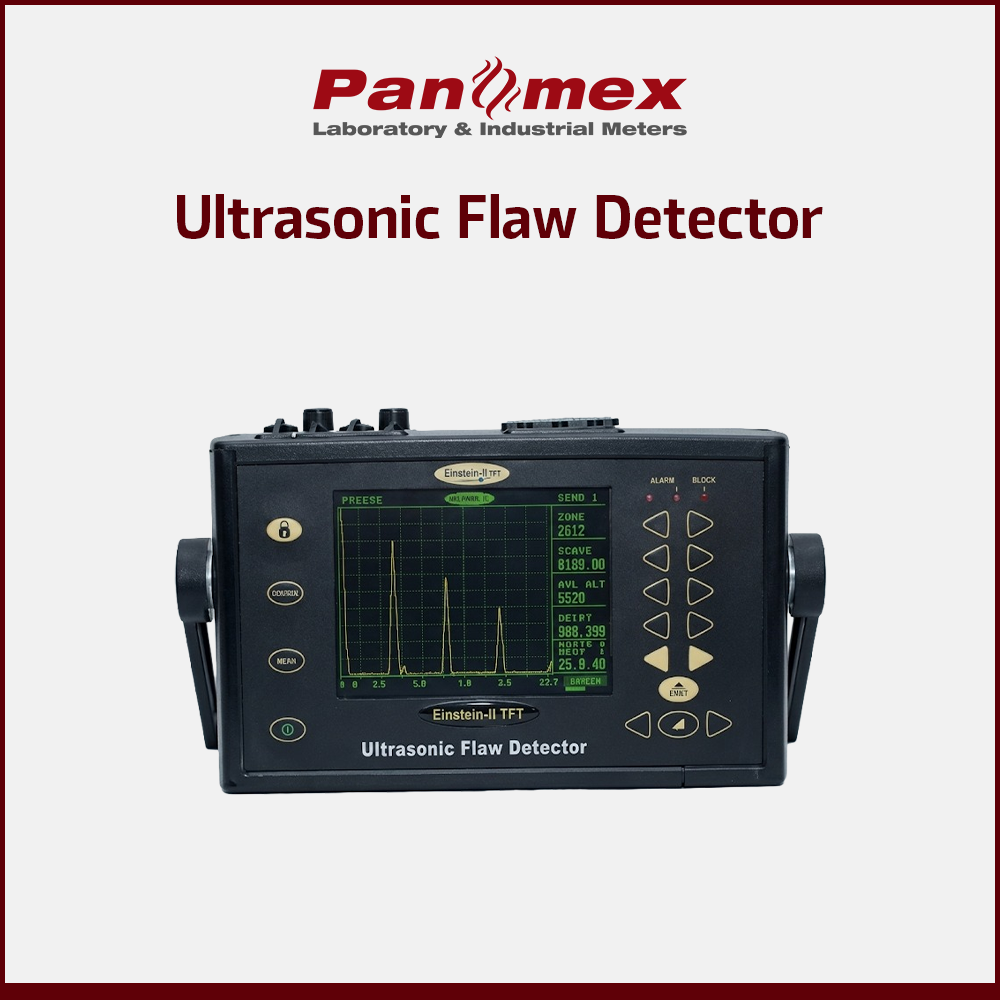

Ultrasonic Flaw Detector
Panomex presents a complete range of Digital Ultrasonic Flaw Detectors engineered to deliver unmatched quality and accuracy for identifying discontinuities and internal flaws in materials. With a wide selection of advanced software options for enhanced inspection capabilities, these ultrasonic flaw detectors are widely appreciated and recommended by industry experts worldwide. The units feature an improved LCD display, USB interface, compact design, and are offered in a cost-effective price range without compromising performance.
Panomex Ultrasonic Flaw Detectors are available in both digital and analog models. Digital ultrasonic flaw detectors consist of an ultrasonic pulser/receiver, integrated hardware and software for signal acquisition and analysis, a waveform display, and a data logging module for inspection records. While analog flaw detectors are still manufactured for specific applications, most modern Panomex instruments utilize advanced digital signal processing, ensuring superior stability, higher precision, and reliable flaw detection results.
| Model |
BST-UFD20 |
|---|---|
| Product |
Ultrasonic Flaw Detector |
| Range |
0 to 9999 mm, at steel velocity |
| Material Velocity |
1000 to 9999m/s |
| Display Delay |
-20 to 3400 µs |
| Probe Delay / Zero Offset |
0 to 99.99µs |
| Sensitivity |
110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked |
| Test Modes |
Pulse echo, dual element and thru-transmission |
| Pulser |
Tunable Square Wave Pulser |
| Pulse Repetition Frequency range |
10 Hz to 1000 Hz |
| Pulse Energy |
Low, Medium and High |
| Damping |
100, 200, 400 ohms |
| Bandwidth (amplifier bandpass ) |
0.5 to 15 MHz |
| Gate Monitors |
Two independent gates controllable over entire sweep range |
| Rectification |
Positive halfwave, negative halfwave, fullwave, RF |
| System Linearity (Horizontal) |
+/-0.2% FSW |
| System Linearity (Vertical) |
0.25% FSH |
| Reject (suppression) |
0 to 80% full screen height |
| Units |
Inch or millimeter |
| Transducer Connections |
BNC or LEMO |
| Power Requirements |
110 / 220 Volts |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-30°C to 50°C |
| Noise Level |
≤ 10% |
| Relative Humidity |
(20 ~ 95)% RH |
