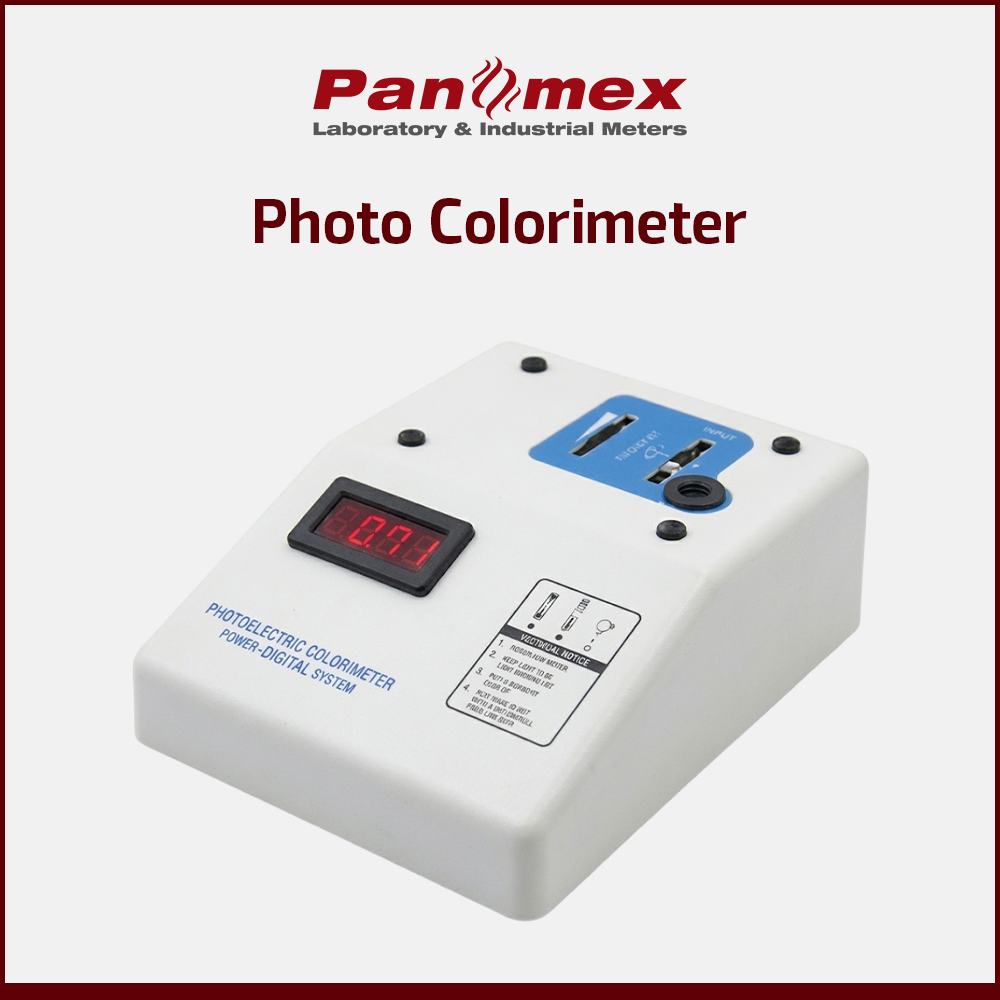

Photo LED Colorimeter, Portable Photoelectric Colorimeter
Panomex Photo Colorimeters are microprocessor-based digital colorimeters that combine ease of use with high testing capability. These photo colorimeter systems are durable, compact, dustproof, and waterproof, making them suitable for both laboratory and field applications. Designed with user experience in mind, Panomex photo colorimeters offer reliable performance even in demanding working conditions.
Thanks to their user-friendly features, simple operation, and accurate results, these instruments are widely used for blood analysis and chemical testing. Panomex photo colorimeters provide dependable and consistent measurement, making them a preferred choice for laboratories, hospitals, and research facilities.
| Model No. |
BST/PCM/1312 |
|---|---|
| Wave Length Range |
400 to 700nm |
| Resolution |
1% T, 0.01 Abs., 1 Conc., 1 K Factor |
| % Transmission |
0 – 100% T |
| Absorbance |
0 – 1.99 A |
| Concentration |
0- 19999 |
| K Factor |
1 – 19999 |
| Photo Detector |
Silicon Photodiode/Photo Cell |
| Display |
16×2 line alphanumeric LCD display with backlit for %T, Abs., Conc., K Factor |
| Keyboard |
8 Keys, soft touch membrane type |
| Data Storage |
Upto 100 samples |
| Light Source |
6.8V, 0.3Amp. Tungsten Lamp |
| Sample System |
10 mm path length matched glass test tubes |
| Filters |
420, 440, 490, 520, 540, 570, 600, 700nm |
| Printer Interface |
Centronics Parallel Printer interface for any dot matrix printer |
| RS232C Interface |
Available (on request) |
| Dimensions |
240 x 254 x 90 mm (L x B x H) |
| Weight |
2.5 Kg. (Approx.) |
| Power Supply |
230V AC+10% 50Hz. with in-built stabilizer |
| Accessories |
Matched Test Tube Set of 5, Operation Manual, Dust Cover, Spare Lamp |
